Technical Data
Working Height | 26.4m / 86.6ft |
---|---|
Platform Height | 24.4m / 80.05ft |
Horizontal Outreach | 17.5m / 57.4ft |
Up & Over Clearance | 9.3m / 30.5ft |
Safe Working Load | 350kg / 772lbs |
Tyres | Solid Rubber |
Power Source | Diesel Engine |
Machine Weight | 15,500kg / 34,172lbs |
Basket Depth | 0.91m / 3ft |
Basket Width | 2.44m / 8ft |
Machine Height | 2.97m / 9.75ft |
Machine Width | 2.48m / 8.1ft |
KEY FEATURES
- Operator tool tray
- 360' continuous turntable rotation
IDEAL FOR
- Rough terrain
- Construction sites
- Large maintenance projects

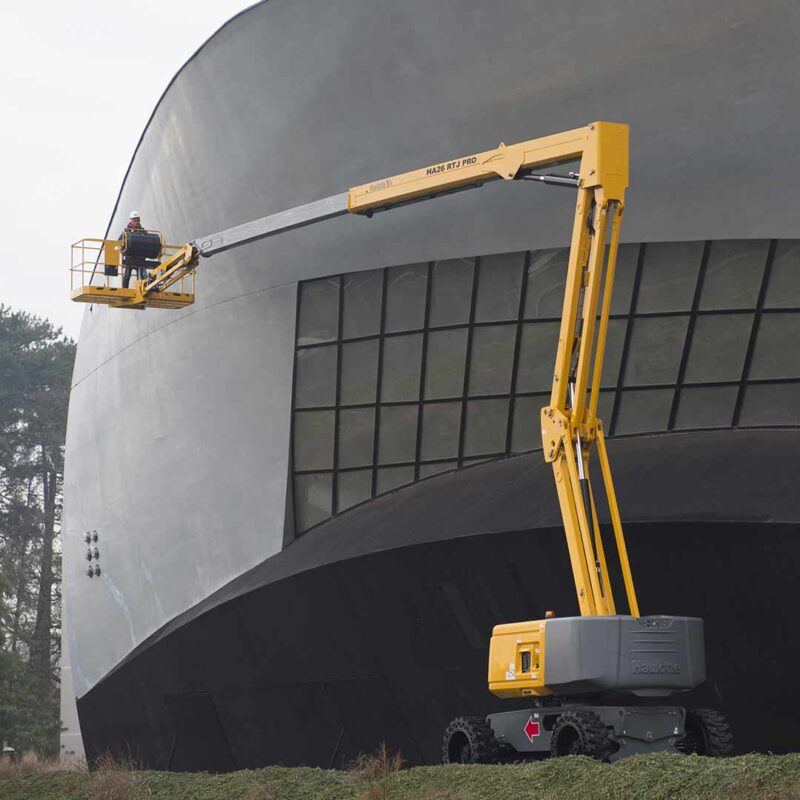

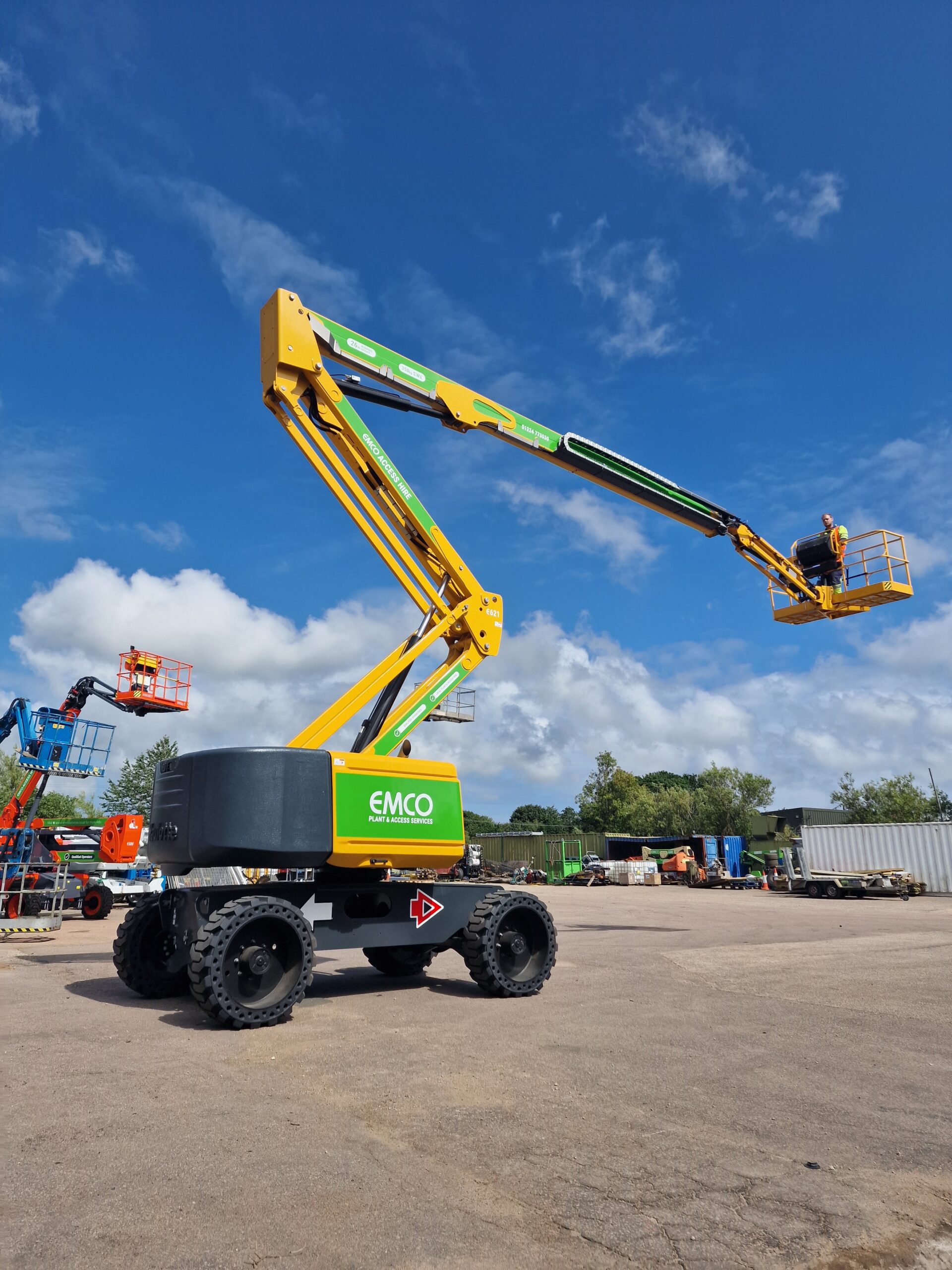

Our RTJ range of articulating booms is designed to work in the most restrictive environments and tackle the most demanding projects. Haulotte’s expertise ensures safe working on all RTJ articulating booms, up to 43m. HA26 RTJ PRO is equiped with an oscillating axle which adjusts the position of the axle to adapt to the terrain and keep the wheels in contact with the ground. In 4-wheel steering mode, the turning radius is shortened, enabling you to maneuver in tight or congested spaces.
