Technical Data
| Working Height | 16m / 52.4ft |
|---|---|
| Platform Height | 14m / 45.9ft |
| Horizontal Outreach | 8.3m / 27.2ft |
| Safe Working Load | 230kg / 507lbs |
| Up & Over Clearance | 7.65m / 25ft |
| Power Source | Diesel Engine |
| Tyres | Solid or foam-filled |
| Machine Weight | 6540kg / 14418lbs |
| Basket Depth | 0.8m / 2.6ft |
| Basket Width | 1.83m / 6ft |
| Machine Height | 2.3m / 7.5ft |
| Machine Width | 2.3m / 7.5ft |
KEY FEATURES
- Crab & 4-wheel steer
- Differential lock on rear axle
- 4WD enables rough terrain access
IDEAL FOR
- Rough terrain
- General Maintenance
- Construction sites

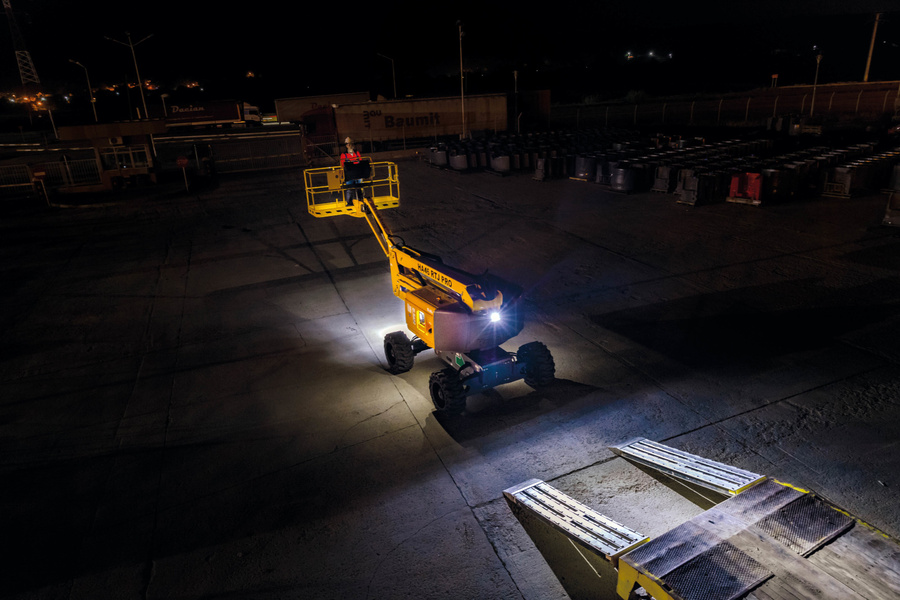

Our HA16 RTJ PRO articulating boom is designed to work in the most restrictive environments and tackle the most demanding projects. HA16 RTJ PRO articulating boom incorporates our latest innovations to offer you the safest solutions on the market for working at heights, increase the productivity of your construction sites and optimize the uptime of your machines.. HA20 RTJ PRO articulating boom is equiped with an oscillating axle which adjusts the position of the axle to adapt to the terrain and keep the wheels in contact with the ground. 360° turret rotation let you reach the work area quickly for greater efficiency.
